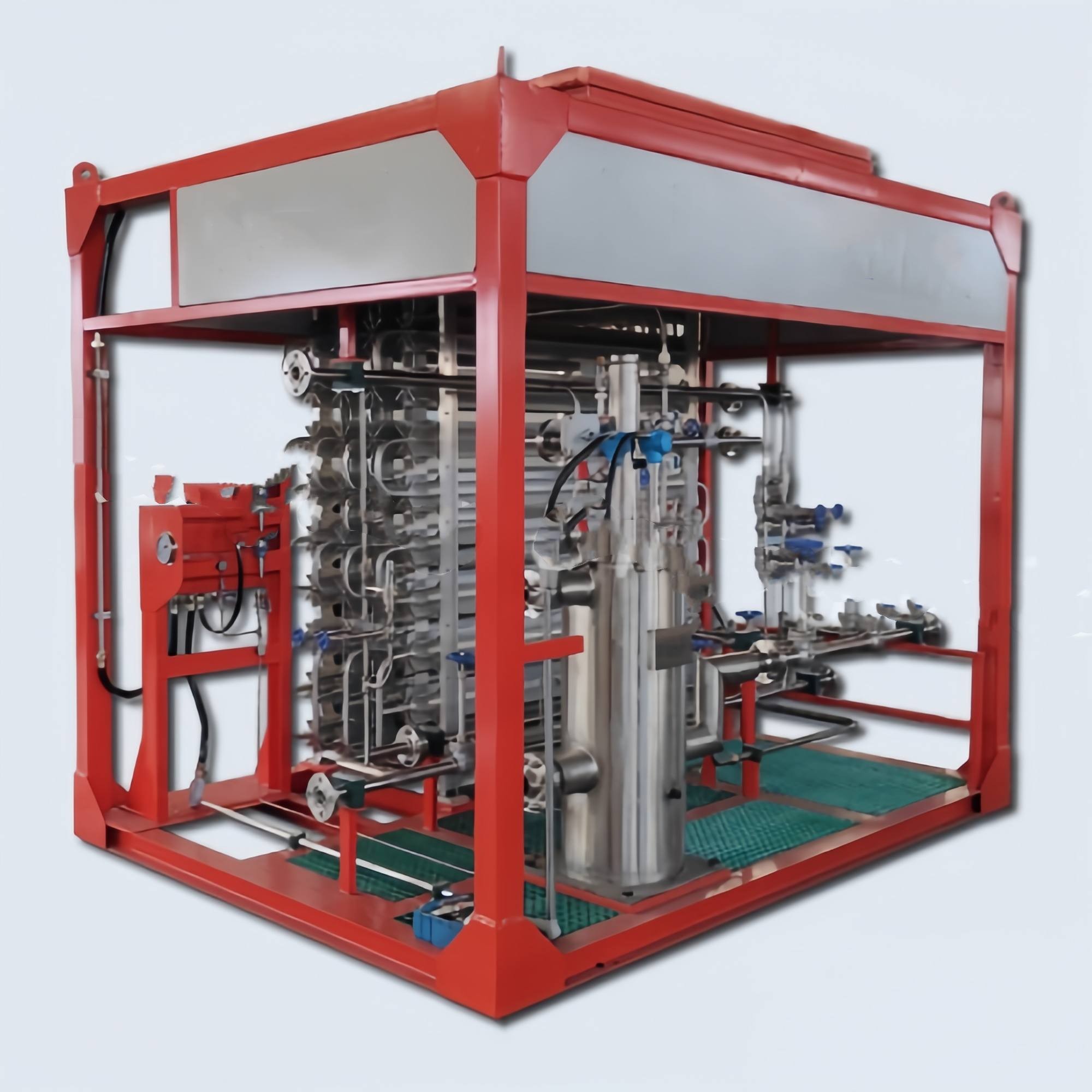

LNG Submersible pump skid

Category: SKID-MOUNTED EQUIPMENT
Views: 81
Flow :6-24m³/h （liquid）
Working medium：LO2 LN2 LAr
Design temperature:-196°C

PRODUCT DETAIL

LNG Submersible pump skid

Range of application

The pump lever integrates pipes, valves, and all kinds of instrument sensors to facilitate transportation, eliminating the complex construction of the owner's site. It is mainly used in LNG filling stations, filling liquid natural gas for natural gas heavy trucks, and natural gas buses, and can also be used in LNG receiving stations, LNG tank trucks filling and unloading conditions. It is also suitable for industrial gas tank truck unloading liquid except oxygen.

Technical Parameter

No.	Description	Specific parameters
1	Type	frequency speed control /vertical
2	Feature	Single suction/single stage
3	Design temperature	-196°C
4	Working medium	LNG/LN2/LAr
5	Inlet pressure	Depends on pump tank pressure (conventional 2.5MPa or less)
6	Max head	280M
7	Flow	6-24m³/h （liquid）
8	Motor data	380V/50HZ/3-PH/2P/anti-explosion/MAX 6000RPM
9	Control method	Automatic stop manual open
10	Bare pump weight	90KG
11	Delivery date	7-30days
