Industrial gas filling pump skid

Category: SKID-MOUNTED EQUIPMENT
Views: 92
Flow :200-450L/H
Inlet pressure:0.02-1.6MPa
Working medium：LO2 LN2 LAr
Design temperature:-196°C

PRODUCT DETAIL

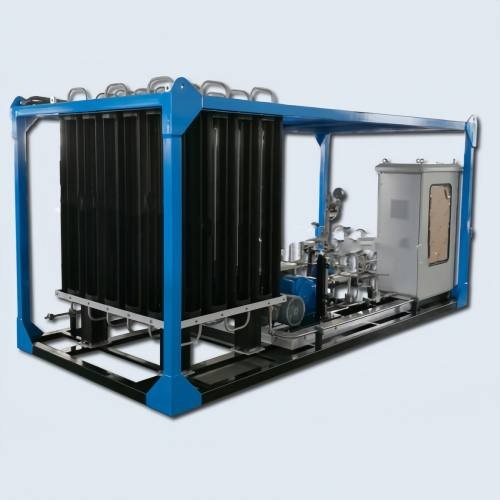

Industrial gas filling pump skid

Range of application

Industrial gas pump sled is a one-stop solution for industrial gas filling, this type of sled is the equipment used in the filling system, such as pumps, gasifiers, valves, all kinds of sensors, valve instruments and electronic control devices are integrated in an overall framework, through the optimal design of the pipeline, all the equipment is connected, eliminating the complicated construction of the customer site. And convenient transportation to achieve mobile operations.

Technical Parameter

No.	Item no.	specific parameter
1	Type	Skid-mounted/variable frequency speed regulation
2	pump	Single pump (or double pump, optional)
3	Design temperature	-196°C
4	Working medium	LO2 LN2 LAr
5	inlet pressure	0.02-1.6MPa
6	Working pressure	0-25.0MPa
7	Flow	200-450L/H， 300-600L/H, 400-800L/H, 800-1200L/H
8	Motor data	380V/50HZ/3-PH
9	Control method	Automatic stop manual open
10	Delivery date	30days
