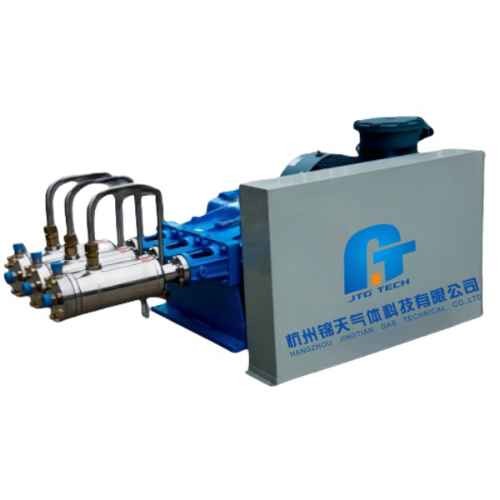

Triple Cold Ends L-CNG Reciprocating Pumps
Such pumps are mainly used for filling high pressure gas cylinders at L-CNG natural gas stations. The units are mainly piston pumps with single,double three cold ends.
Applicability
Filling of high pressure gas cylinders at L-CNG natural gas stations.
Urban natural gas peak shaving station pipe network gas supplementand pressure boost.
Filling of LNG Dewar bottles.
Standard configuration
Liquid inlet filter
Liquid outlet pressure gauge and root valve
Drive box oil temperature sensor
Liquid inlet, return air metal hose
Damper
Table of L-CNG Performance Parameters
|
型号 Model |
缸数 NO. |
流量 Flow |
进口压力 Inlet pressure |
出口压力 Max Pressure |
功率 Power |
接口尺寸Size mm(DN) |
||
|
L/h |
MPa(A) |
MPa(A) |
KW |
进液Liquid inlet |
出液 Liquid outlet |
回气 Return air |
||
|
SBP-800/250 |
1 |
800 |
0.02-1.6 |
25 |
15 |
32 |
15 |
25 |
|
SBP-1000/250 |
1 |
1000 |
0.02-1.6 |
25 |
15 |
32 |
15 |
25 |
|
双列 |
||||||||
|
SBP-1500/250 |
2 |
1500 |
0.02-1.6 |
25 |
22 |
50 |
15 |
32 |
|
SBP-2000/250 |
2 |
2000 |
0.02-1.6 |
25 |
30 |
50 |
15 |
32 |
|
三列 |
||||||||
|
SBP-2500/250 |
3 |
2500 |
0.02-1.6 |
25 |
37 |
50 |
20 |
40 |
|
SBP-3000/250 |
3 |
3000 |
0.02-1.6 |
25 |
45 |
50 |
20 |
40 |
|
SBP-3500/250 |
3 |
3500 |
0.02-1.6 |
25 |
45 |
50 |
20 |
40 |
|
SBP-4000/250 |
3 |
4000 |
0.02-1.6 |
25 |
55 |
50 |
20 |
40 |
|
SBP-4500/250 |
3 |
4500 |
0.02-1.6 |
25 |
75 |
50 |
20 |
40 |
|
SBP-5000/250 |
|
5000 |
0.02-1.6 |
25 |
75 |
50 |
20 |
40 |
|
SBP-10000/350 |
3 |
10000 |
0.02-1.6 |
35 |
160 |
65 |
25 |
50 |
Note: The above parameters are for our standard products. Pls consult us if you need custom-made products.
