Small size air separation plant KDON-100
- PRODUCT DETAIL
Specifications:
Product with oxygen
|
O2 flow |
50 m³/h |
60 m³/h |
80 m³/h |
100 m³/h |
|
O2 purity |
≥99.7% |
≥99.7% |
≥99.7% |
≥99.7% |
|
O2 pressure |
15 -25MPA |
15 -25MPA |
15 -25MPA |
15 -25MPA |
|
Start-up time |
8-12 Hours |
8-12 Hours |
8-12 Hours |
8-12 Hours |
|
Operating period |
≥1 Years |
≥1 Years |
≥1 Years |
≥1 Years |
Product with oxygen or nitrogen
|
O2 flow |
50 m³/h |
60 m³/h |
80 m³/h |
100 m³/h |
|
O2 purity |
≥99.7% |
≥99.7% |
≥99.7% |
≥99.7% |
|
O2 pressure |
15 -25MPA |
15 -25MPA |
15 -25MPA |
15 -25MPA |
|
N2 flow |
Or (50m³/h ) |
Or (60m³/h ) |
Or (80m³/h ) |
Or (100m³/h ) |
|
N2 purity |
99.999% |
99.999% |
99.999% |
99.999% |
|
N2 pressure |
15 -25MPA |
15 -25MPA |
15 -25MPA |
15 -25MPA |
|
Start-up time |
8-12 Hours |
8-12 Hours |
8-12 Hours |
8-12 Hours |
|
Operating period |
≥1 Years |
≥1 Years |
≥1 Years |
≥1 Years |
Description:
You may find that the connection between individual machines & equipments is high pressure flexible tube, this is one of the advanced features for this plant as designed. It will definitely save installation period on site.
Compressed the liquid oxygen through liquid pump. So the oxygen can be used in hospital.
The connection pipes are high pressure soft pipe, easy connect and separate,The time of installation and testing is not more than 30 days.

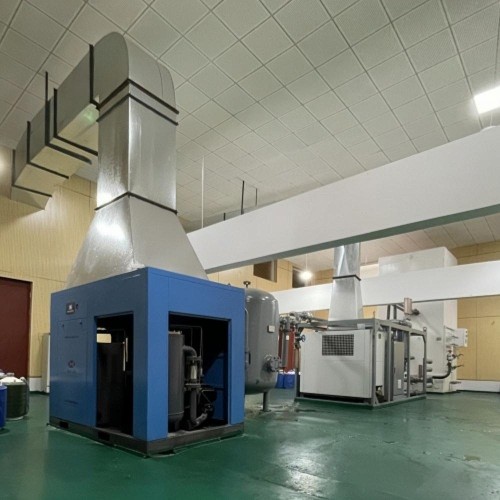

Adopted screw compressor (main machine imported from world famous company). Keep the plant normal work long time,Easy operate and maintenance.
Air cooling type is adopted for whole set of plant, there is no cooling water required.
Need very small area (Land Area 40㎡,Factory Area 90㎡),.

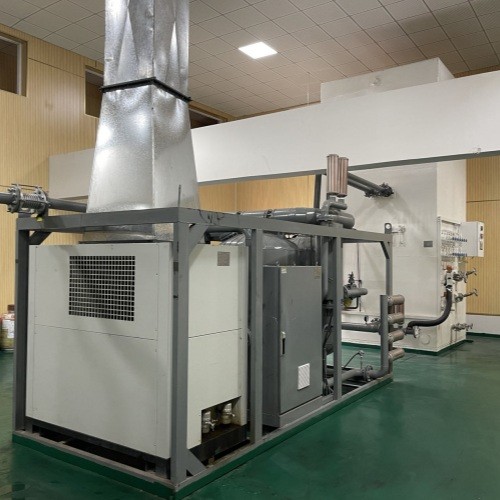

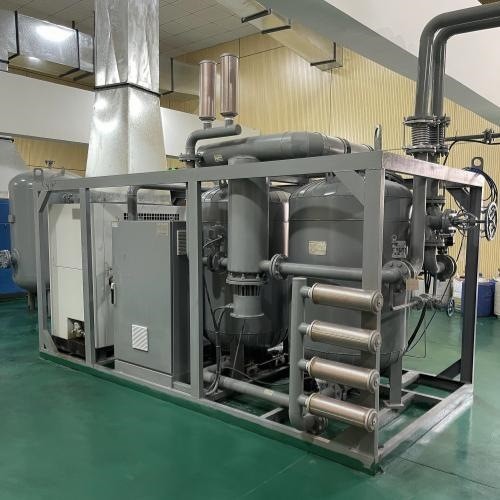

Skid mounted type air separation plant, connected by high pressure flexible pipe between individual machines/equipments ,
Plant features
1) This air separation plant adopts cryogenic separation process. Oxygen is obtained by inner compression, so it can be both for medical & industrial usage and to be filled into cylinder.
2) Whole set of plant adopts skid mount type and connected with high-pressure hose between individual machines/equipments. So, it no need any foundation required to save investment cost for civil construction and shorten installation period accordingly.
3) Cooling mode of plant adopts air cooling for whole set of plant, no cooling water system required so it also save investment cost for the owner.
4) This plant can be shifted to any second plant to operate because of its no fixed foundation feature. So it is a mobile type plant.
Applications:
we supplied to many countries (Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania) .
Process:

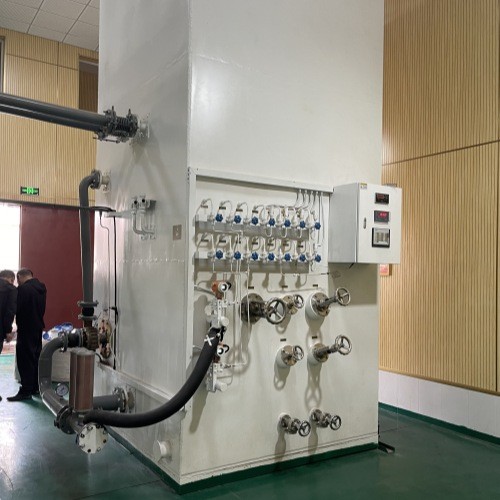

Air→ Air compressor → Pre-cooler → Purifier →Rectification column and Turbo-expander →liquid oxygen tank or liquid nitrogen tank
